The Robot Co-Pilot

Any pilot who has spent much time in single-engine helicopters is familiar with the concept of flying from one forced landing zone to the next — constantly searching for clear areas to which a safe autorotation could be made should that single engine stop working. On long cross-country flights in good weather, spotting landing zones is one way that pilots stay engaged when there’s not much else to do. But start ramping up the workload with traffic, radio calls, or other demands of the mission, and that diligent terrain scan can quickly be abandoned.

The ALIAS program aims to leverage autonomy to reduce workload for human pilots, allowing them to
The ALIAS program aims to leverage autonomy to reduce workload for human pilots, allowing them to “use their cognitive capability to do much more than manage the systems on the aircraft and certainly more than moving sticks,” said DARPA’s Graham Drozeski. DARPA also wants to develop the ability for an aircraft to return to base in the event its human pilot becomes incapacitated. Capt. Brian Harris Photo
Advertisement

Imagine what it would be like if your helicopter was doing the scanning for you. While you focused on the task at hand, your aircraft would be searching the surrounding terrain several times per second, constantly identifying and evaluating potential landing zones as the flight progressed. Then, in the event of a sudden power loss, it would adjust its attitude, reduce collective, and begin guiding you toward a predetermined landing spot, all in the time it would take you to notice that a power failure had occurred. You could choose to override the aircraft, but its split-second reactions would have still put you ahead of the curve.

In fact, this capability is already being demonstrated on the Sikorsky Autonomous Research Aircraft (SARA), an S-76B helicopter that has been retrofitted with fly-by-wire flight controls and a supercomputer capable of executing complex search and decision functions.

“Imagine [an] engine failure resulting in an emergency landing,” said Chris Van Buiten, vice president of Sikorsky Innovations. “We’ve been able to show that using autonomy, we can significantly improve performance in those emergency procedures.”

While aviation may someday be dominated by fully autonomous aircraft, it probably won’t reach that point anytime soon. In the meantime, however, manufacturers are exploring ways to integrate autonomy into human piloted aircraft, with the aim of improving efficiency and safety.

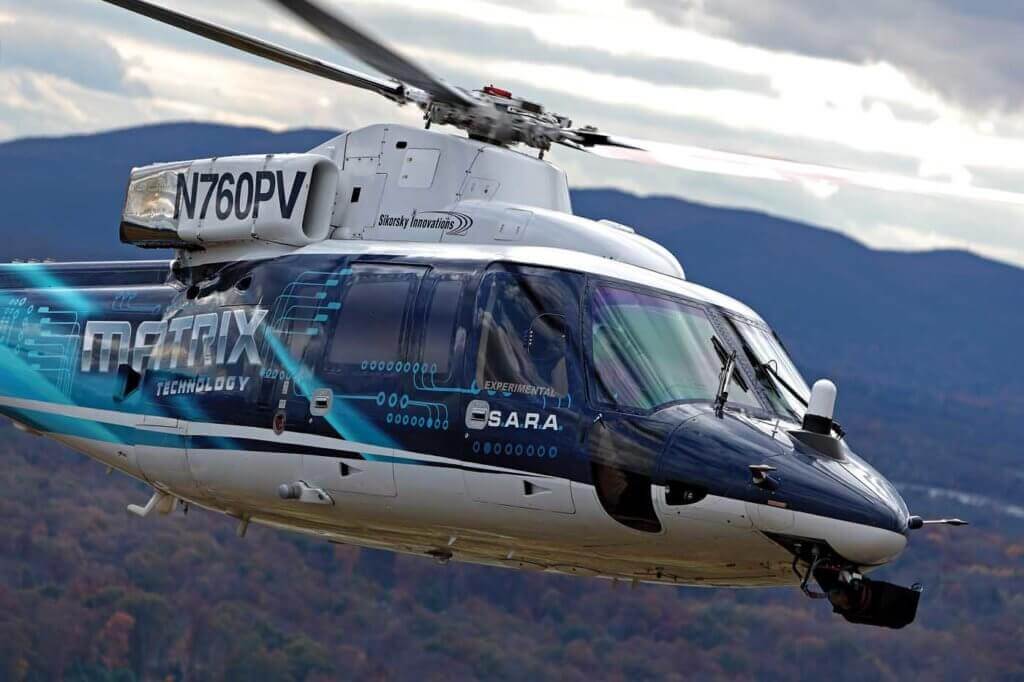

Sikorsky has been developing its Matrix Technology autonomy kit in SARA, an S-76 retrofitted with fly-by-wire flight controls. According to Sikorsky director of autonomous programs Igor Cherepinsky, the larger platform has been helpful in accommodating the supercomputer in the back of the aircraft:
Sikorsky has been developing its Matrix Technology autonomy kit in SARA, an S-76 retrofitted with fly-by-wire flight controls. According to Sikorsky director of autonomous programs Igor Cherepinsky, the larger platform has been helpful in accommodating the supercomputer in the back of the aircraft: “We’re not limited by payload or power, we can experiment all we want.” Ted Carlson Photo

One of the most notable initiatives in this realm is the Defense Advanced Research Projects Agency’s (DARPA’s) Aircrew Labor In-Cockpit Automation System (ALIAS) program. Sikorsky has already completed two phases of the program using SARA, and was recently awarded a contract for the program’s third phase, during which it will further refine its Matrix Technology autonomy kit in an H-60 Black Hawk. With the program moving toward a mature, certifiable product, we visited with Sikorsky and DARPA to learn what greater autonomy could mean for civilian as well as military helicopters.

A Shift in Thinking

Mark Ward is a former U.S. Coast Guard pilot who spent two decades flying Sikorsky HH-60 Jayhawks and Eurocopter (now Airbus) HH-65 Dolphins before his retirement in 2008. Today, as Sikorsky’s chief test pilot for SARA, Ward is leveraging that experience — as well as degrees in computer science and aeronautical engineering — as he explores the frontiers of autonomous flight.

According to Ward, when SARA’s optionally piloted vehicle system, Matrix Technology, is engaged, “it really is flying the aircraft . . . as a pilot I’m there as a safety pilot to ensure that the aircraft behaves in response to the inputs that are being given to it by Matrix. And if not, then I just take the controls away from the Matrix system and fly the aircraft manually.”

Ward agreed that his role is similar to that of a flight instructor. “And in some ways too, when the aircraft is on its own and doing its flying, we are there critiquing its behavior and we can then feed that information back to the engineers and make adjustments,” he said. “Rather than telling a student in the debrief that you need to add a little right pedal, you can actually tell the engineers and they code it up so the right pedal gets added.”

A key difference might be that Ward’s “student” — unlike so many human pilots — reliably incorporates that guidance. SARA can now fly traffic patterns autonomously, and has demonstrated more complex autonomous missions, including an approach to a moving barge. Moreover, Ward said, “the aircraft takes off just fine on its own, and as a matter of fact it does a pretty darn good landing, too.”

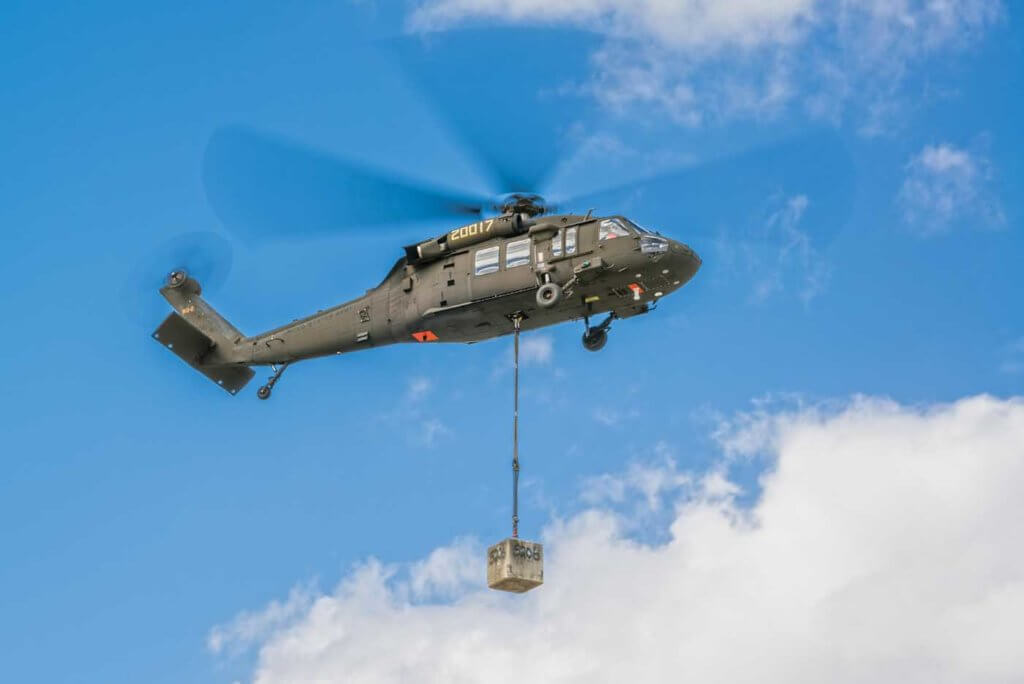

After flying a full duty day with human crews, an autonomous Black Hawk could potentially be used for unmanned resupply or other missions. Steven Kaeter Photo
After flying a full duty day with human crews, an autonomous Black Hawk could potentially be used for unmanned resupply or other missions. Steven Kaeter Photo

When Sikorsky unveiled SARA at the Association for Unmanned Vehicle Systems International (AUVSI) show in 2013, it was presented as a significant step towards the company’s long-term vision of creating an aircraft that could transition between dual-pilot, single-pilot, and unmanned flight modes as simply as turning a switch. But the emphasis was squarely on its “unmanned” capabilities.

“Somewhere along the line the idea started to shift a little bit, to, ‘You know, this type of technology is a great assistance to piloted aircraft, too,'” Ward recalled. So the Sikorsky team, led by director of autonomous programs Igor Cherepinsky, began to explore ways for human operators to take advantage of Matrix Technology. Among other things, they developed a simple, intuitive controller — similar to a 3D drafting mouse — as well as a tablet interface for the system. “When you had the ability to do the long-range planning and execution of a flight with the tablet, and short-distance hover work using the 3D mouse, the two came together really nicely,” Ward said.

Around the same time, DARPA announced its ALIAS program. According to a DARPA press release, the program “envisions a tailorable, drop-in, removable kit that would promote the addition of high levels of automation into existing aircraft, enabling operation with reduced onboard crew.” By leveraging recent advances in automation technology, ALIAS aims to reduce pilot workload while improving mission performance and enhancing aircraft safety.

DARPA awarded contracts for the first two phases of ALIAS to Sikorsky and Aurora Flight Sciences. In Phase 1, Sikorsky used SARA to complete a 30-mile autonomous flight that was planned and executed using its tablet device. In Phase 2, Sikorsky also integrated its Matrix Technology into a Cessna Caravan. Meanwhile, Aurora demonstrated its autonomy solution on a Caravan and a Diamond DA42, and also used a Boeing 737-800NG simulator to show how it could autonomously land that aircraft in the event of pilot incapacitation.

Late last year, DARPA awarded a contract to Sikorsky for Phase 3 of the ALIAS program. According to Graham Drozeski, a program manager in DARPA’s Tactical Technology Office, Phase 3 will likely proceed into 2019 as it continues development of the ALIAS technology on fixed- and rotary-wing platforms, including the H-60.

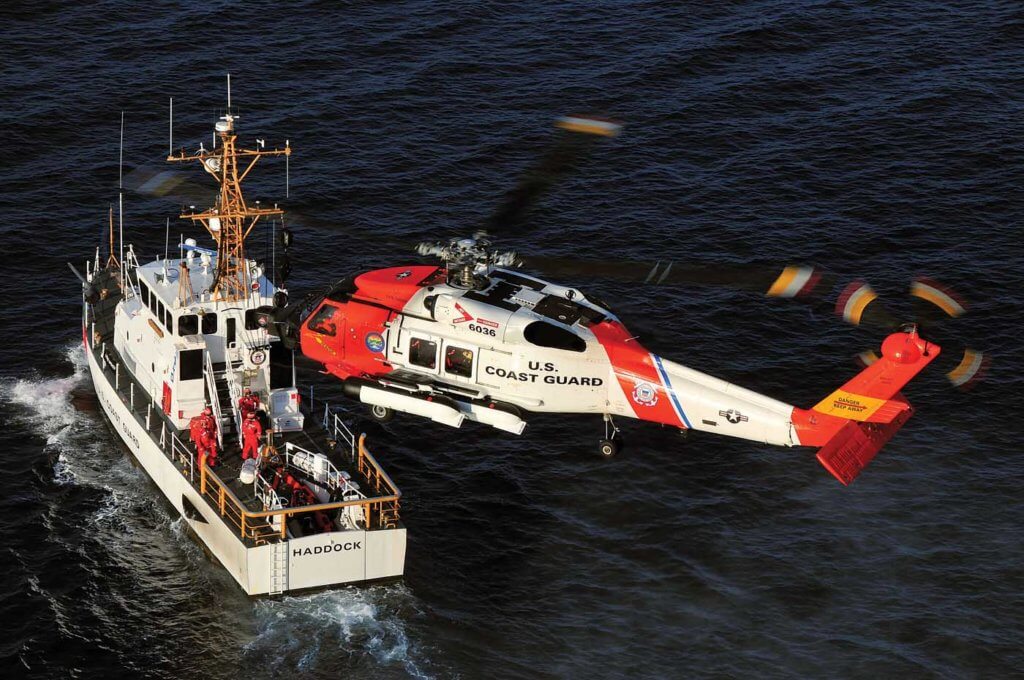

As a former Coast Guard pilot, Sikorsky's Mark Ward sees great potential for autonomy to enhance safety during SAR missions. Skip Robinson Photo
As a former Coast Guard pilot, Sikorsky’s Mark Ward sees great potential for autonomy to enhance safety during SAR missions. Skip Robinson Photo

“The main push for Phase 3 of the program is advancing it towards a transitionable technology that the [U.S.] Army may take charge of under the H-60 program,” he said. “There will be some new capabilities demonstrated, and a major thrust is toward getting something that could possibly transition [to] widespread use across the Army.”

Next-Level Safety

In many ways, Ward said, systems like Matrix Technology are the “logical, almost inevitable progression” of the decades-long trend toward increasing automation in the cockpit. What makes them different from the sophisticated automatic flight control systems that exist today is the degree to which they are “aware” of their surroundings and mission objectives.

A contemporary autopilot can fly precise headings and altitudes across a series of pre-programmed waypoints. If it encounters another aircraft equipped with a traffic collision avoidance system, it can take measures to avoid it. But it can’t maneuver to avoid unexpected obstacles or terrain, or identify an open landing area in the middle of a dense forest. Matrix Technology, said Ward, is “much more aware of the environment, aware of its mission, and what the operator is intending it to do in a mission sense, not just a waypoint-to-waypoint sense like an autopilot.”

Achieving this level of autonomy is significantly harder than programming today’s deterministic autopilots. Not only does it require a sophisticated array of external sensors — such as light detection and ranging (LiDAR) systems — it also calls for methods of artificial intelligence that can translate a fire hose of sensor data into safe, sensible flight control inputs. (For more on the challenges associated with artificial intelligence and aircraft certification, see the September-October 2017 issue of Vertiflite, the AHS International magazine.) These are enormous technical challenges, but the potential rewards have inspired a number of helicopter manufacturers, not just Sikorsky, to invest heavily in tackling them.

Ward said that autonomous capabilities will likely prove most valuable in
Ward said that autonomous capabilities will likely prove most valuable in “the night flying, and the heavy weather, and lowvisibility conditions. That pucker factor is going to be much less.” Mike Reyno Photo

“I think it’s tremendous, I really do,” said Ward. Speaking as a former search-and-rescue (SAR) pilot, Ward suggested that systems like Matrix Technology could greatly enhance safety by reducing pilot workload during complex missions. On an autonomy-enabled SAR mission, for example, “you’re not focusing on just flying the aircraft, you’re thinking about everything that’s happening in the mission: where you’re going, what kind of survivor you’re expecting to see when you get there — or even if you’re going to see the survivor when you get there; how you’re going to locate them. You’re communicating with other assets in the area. You’re doing those human decision things, while the system is taking care of the boring requirement of keeping the aircraft moving through the air in the right direction.”

Drozeski, who is a former Army Black Hawk pilot, pointed out, “For years we’ve been adding more and more avionics and mission systems to the aircraft, and they’ve been driving us the wrong way in terms of the cognitive margin of the aircrew. ALIAS is a way to alleviate that. By pushing more of the burden of operating the aircraft into the autonomy, it enables the crew to focus on the tasks at hand and to look at the bigger picture.”

While autonomous platforms could provide operators with new capabilities — such as the ability to fly more hours in a day with the same flight crew staffing levels — Drozeski said that there is “incredible opportunity” simply in reducing fatalities and mishaps caused by pilot error. “Imagine if no aircraft ever again had a gear-up landing because they missed a step in the checklist,” he said. “Imagine controlled flight into terrain not being a leading killer of military aircrews. Those are huge, game-changing capabilities for the platforms.”

And the appeal is just as great for the civilian helicopter industry, in which controlled flight into terrain remains a leading cause of fatal accidents. Van Buiten said that Sikorsky has been working closely with the U.S. Federal Aviation Administration (FAA) from the beginning of its Matrix Technology program to explore ways to transition the technology into civil-certified, human-piloted aircraft.

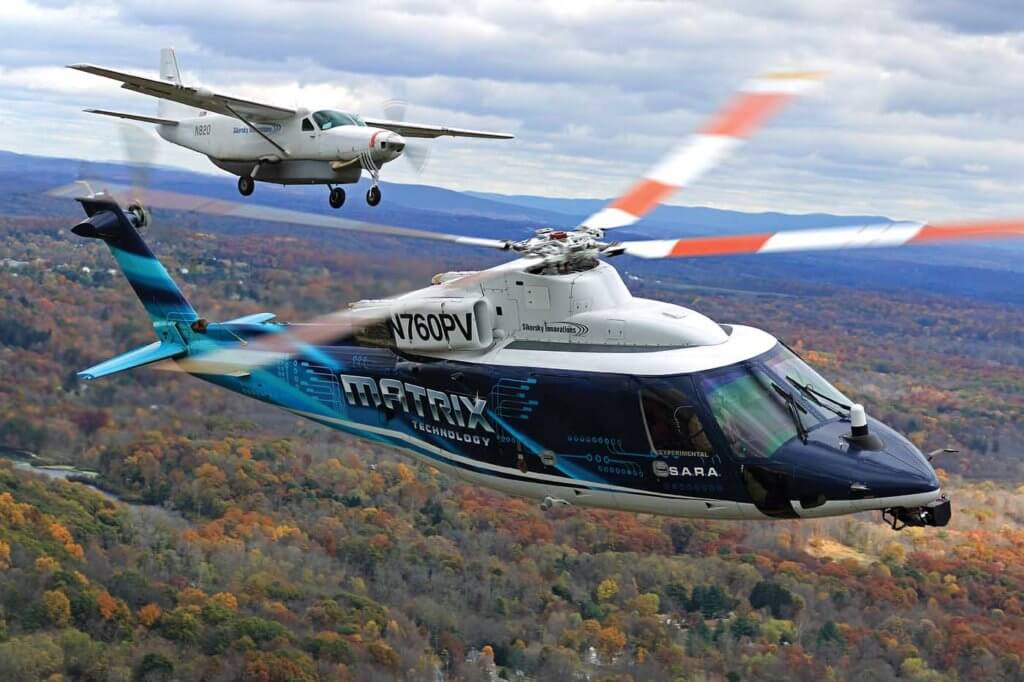

Sikorsky has demonstrated its Matrix Technology in a Cessna Caravan as well as an S-76. With the ALIAS program, according to DARPA's Graham Drozeski,
Sikorsky has demonstrated its Matrix Technology in a Cessna Caravan as well as an S-76. With the ALIAS program, according to DARPA’s Graham Drozeski, “We’re developing a toolkit that is intended to enable putting autonomy in the full spectrum of existing aircraft, and when I say full spectrum I mean from platforms that were built in the ’50s without autopilots, through to the latest fly-by-wire aircraft.” Ted Carlson Photo

“This technology offers a real path to fundamentally changing the primary cause of fatal accidents for helicopters operating in obstacle-rich environments. I think the FAA is cognizant that there’s a big opportunity in enabling this, and that has them showing some flexibility for working on this and basically making it successful,” he said.

“Whether it’s safety, or cost-reduction, or improved performance on the battlefield, I think we’re highly motivated — in the commercial space, in the [military] space — highly motivated to advance this technology. And that’s why you’re seeing huge investment in the commercial sector. We’ve got a sense of the importance and the opportunity that’s here.”
